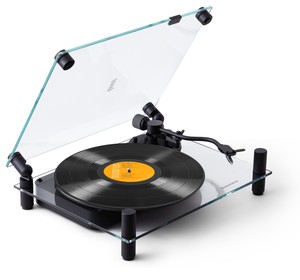

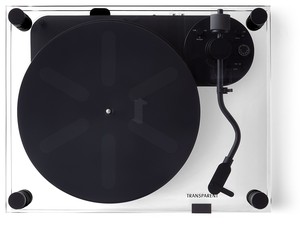

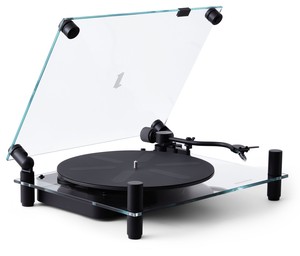

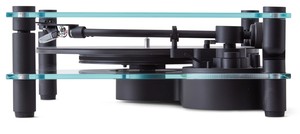

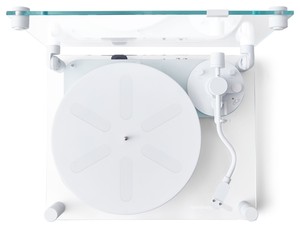

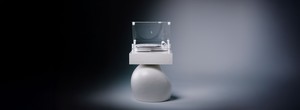

Transparent Turntable

The Transparent Turntable combines timeless glass and aluminum design with the warmth of vinyl. A modular record player made to last, and the perfect match for any Transparent Speaker.

Timeless Design

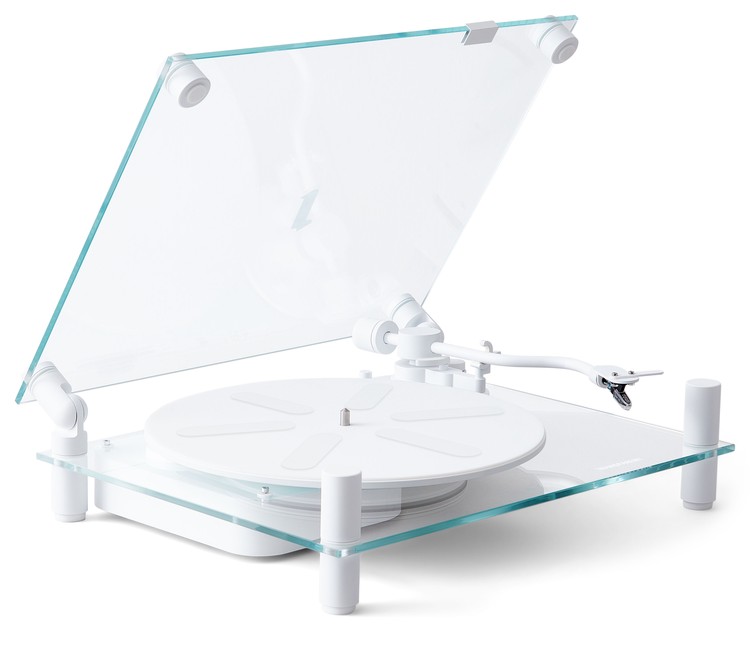

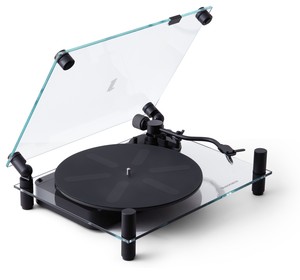

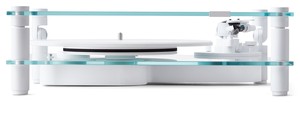

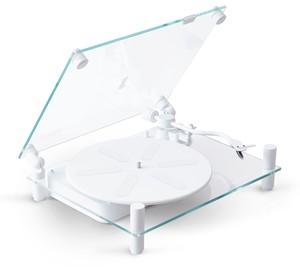

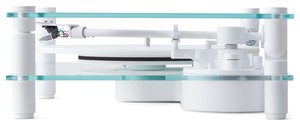

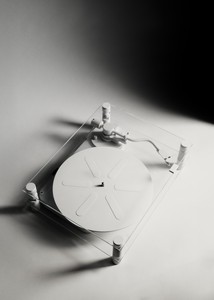

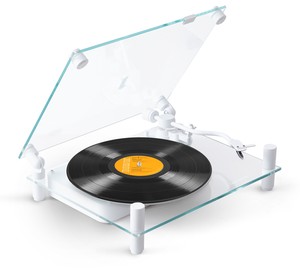

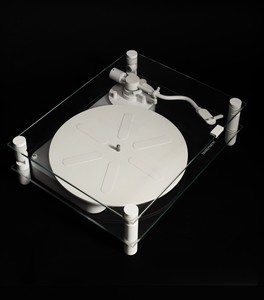

The Transparent Turntable is a reinvention of a classic vinyl record player, designed for a modern home and an ever evolving technology. The Transparent Turntable is meticulously crafted out of aluminium and tempered glass. It is a belt driven system with a built in phono stage, and a pre-mounted cartridge from Danish Ortofon.

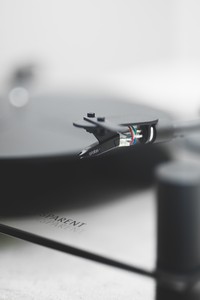

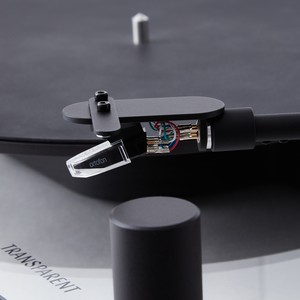

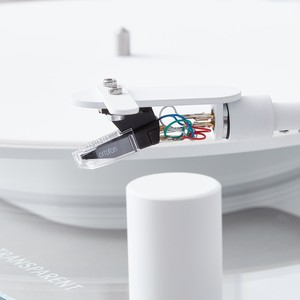

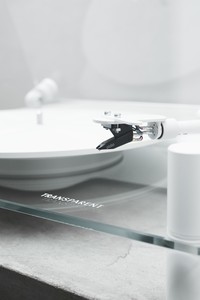

• Cartridge: Ortofon OM5E (MM)
• Stylus: Elliptical Diamond

Modular

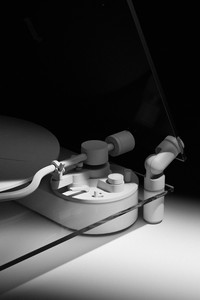

Just like all Transparent products the Transparent Turntable has a completely modular design. With the future in mind, it is made for flexibility, upgradability and repairability.

• Cartridge Mount: Standard ½ in
• Headshell Mount: Standard SME

Transparent Sound

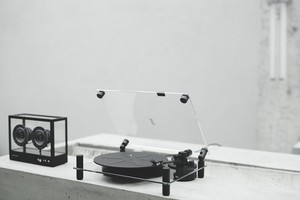

The Transparent Turntable plays music to any sound system, but works best with a Transparent Speaker. It plays with effortless clarity and precision, and offers playback either through cable or Bluetooth.

• Wireless Module: Bluetooth 5.0

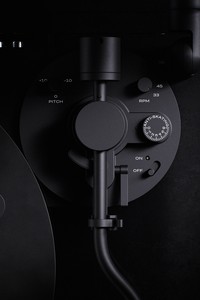

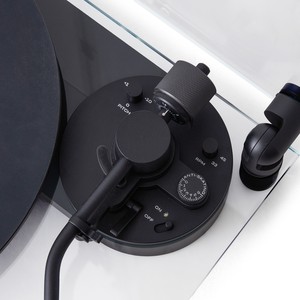

• Preamp: Built in (with on/off switch)

Technical Specifications

• Nominal speeds: 33⅓ and 45 RPM
• Speed variance: 33: ±0.70%, 45: ±0.60%
• Wow and flutter: 33: ±0.25%, 45: ±0.25%
• Signal to noise: ≥70dB at 1kHz, 0dB A-weighted
• Frequency range: 20-25,000Hz +3 / -3
• Stylus tip radius: r/R 8/18 µm
• Tracking force range: 1.5-2.0 g (15-20 mN)
• Tracking force, recommended: 1.75 g (17.5 mN)
• Tracking angle: 20°
• Replacement stylus unit: Ortofon Stylus 5E
• Effective tonearm mass: 13.5g
• Effective tonearm length: 220mm / 8.7in
• Overhang: 19.5mm / 0.77in
• Max power consumption: 15W
• Dimensions (W x H x D): 410 x 125 x 320 mm / 16 x 5 x 13 in
• Weight: 6.5kg / 14lb
• Dimensions packaging (W x H x D): 580 x 240 x 460 mm / 23 x 10 x 19 in
• Weight incl. packaging: 7.0kg / 15lb
• Rated input voltage: 100~240Vac, @ 50/60Hz
• Bluetooth version: 5.0, Qualcomm CSR8670C
• Normal or True Wireless (stereo) pairing
• Codec: aptX LL / SBC / MP3 / AAC
• Low Latency: <40ms

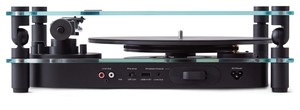

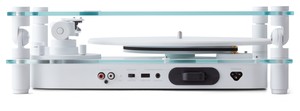

• 3.5 mm port for digital optical and analogue signals
• µUSB port
• Gold-plated contacts for perfect signal transmission
